The safest way to take hazardous liquids from storage tanks is done from the top by using a siphon system. The procedure provides the safe evacuation as well as a dependable areation when the daily operation is finished or in case of emergency. This item will considerably increase the safety of your plant.

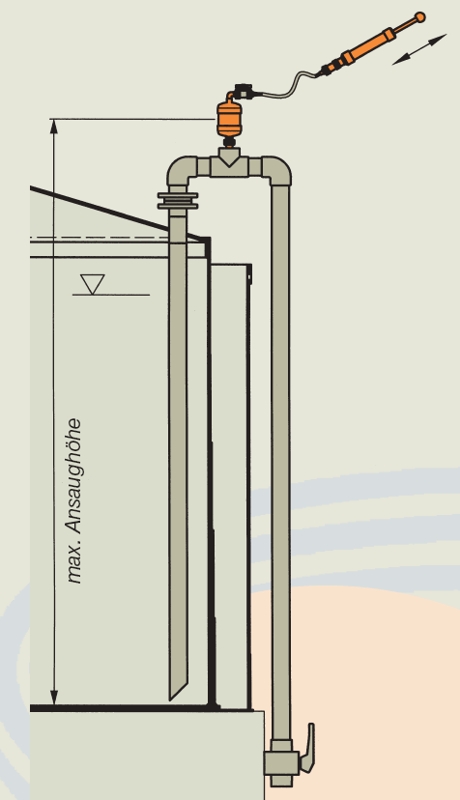

The siphon system consists of submersion pipe inside the tank, siphon device and evacuation piping outside the tank. At the lowest point of the evacuation pipe a stop valve must be fitted.
The siphon device must be mounted on the very top of the evacuation piping system.

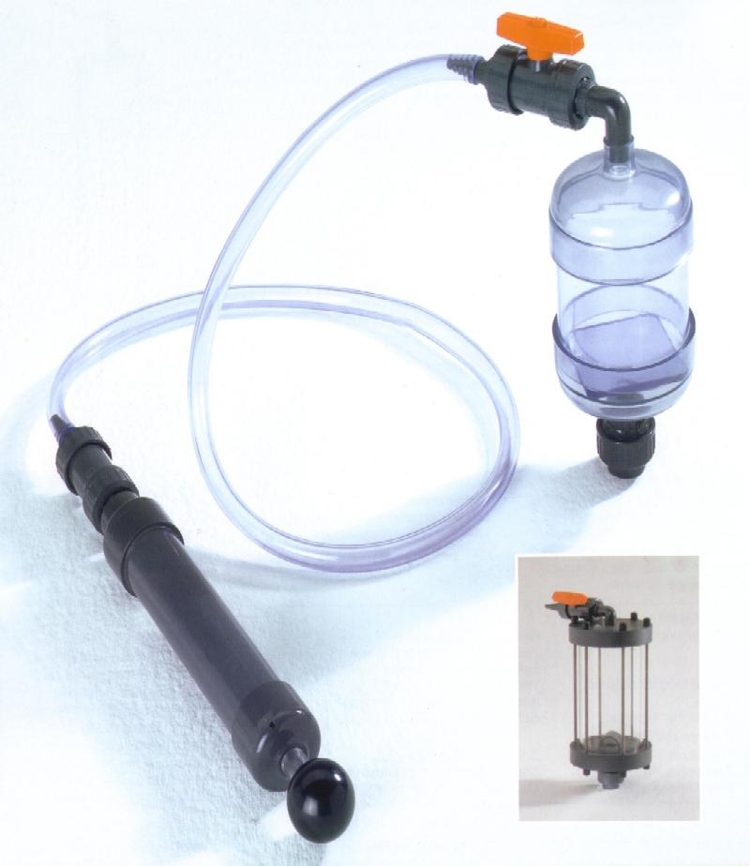

- equipped with bumper plate and ball valve.

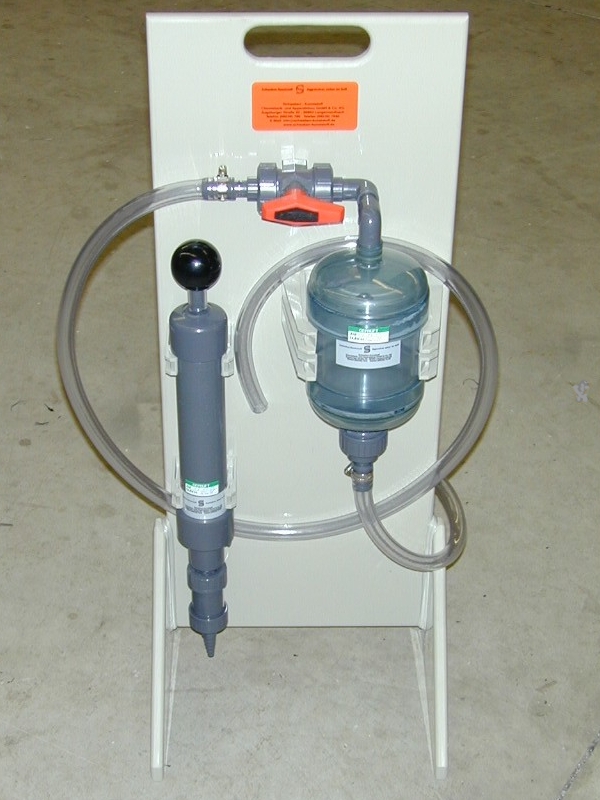

- hand vacuum pump from UPVC with non-returning valve and hose
- Siphon device available from UPVC or DURAN glass
with siphon vessel from UPVC, pre-installed on a support plate for easy and efficient on-site installation.
Equipped with siphon vessel, 3-way ball valve, injector, ball valve and pressure control for compressed air.
Upon request siphon vessel from DURAN glass available.
The safest way to take hazardous liquids from storage tanks is done from the top by using a siphon system. The procedure provides the safe evacuation as well as a dependable areation when the daily operation is finished or in case of emergency. This item will considerably increase the safety of your plant.
The siphon system consists of submersion pipe inside the tank, siphon device and evacuation piping outside the tank. At the lowest point of the evacuation pipe a stop valve must be fitted.
The siphon device must be mounted on the very top of the evacuation piping system.
- equipped with bumper plate and ball valve.
- hand vacuum pump from UPVC with non-returning valve and hose
- Siphon device available from UPVC or DURAN glass
- for automatic lifting of liquid chemicals for top removal from storage containers
- Safe ventilation of the extraction line to protect against
Lifting at the end of operation

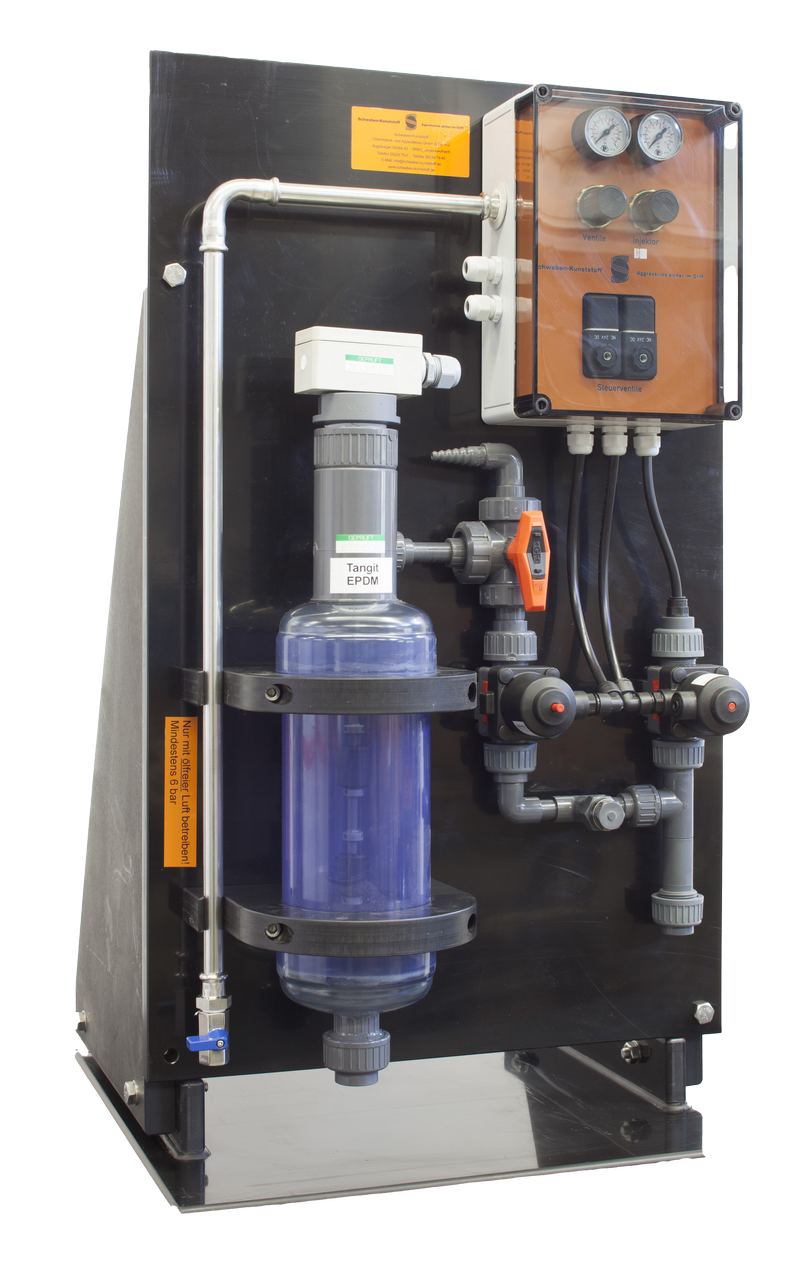

- Equipped with special lifting vessel with limit contact sensor Min/Max, 3-way ball valve, injector and diaphragm valve for propellance and lifting
- on mounting panels for easy and easy use local installation

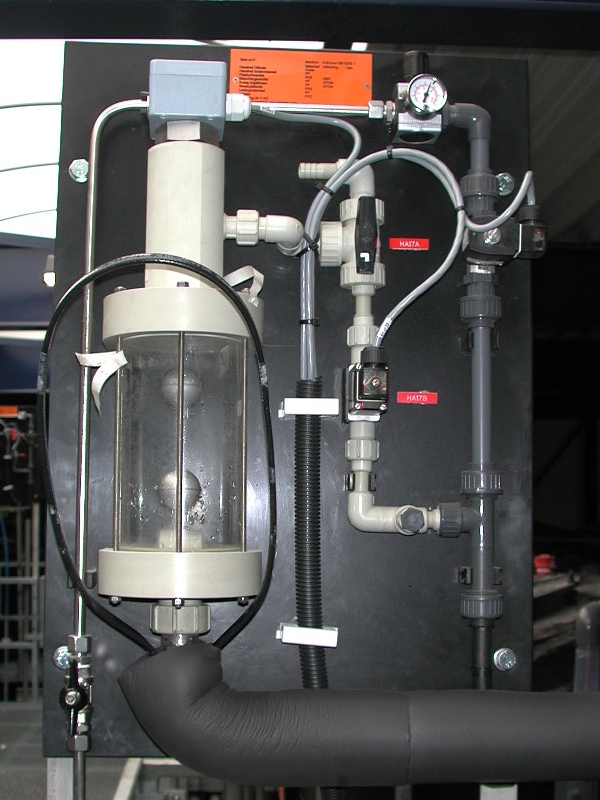

- on request also with special lifting vessel made of Duran glass or available with electric vacuum pump

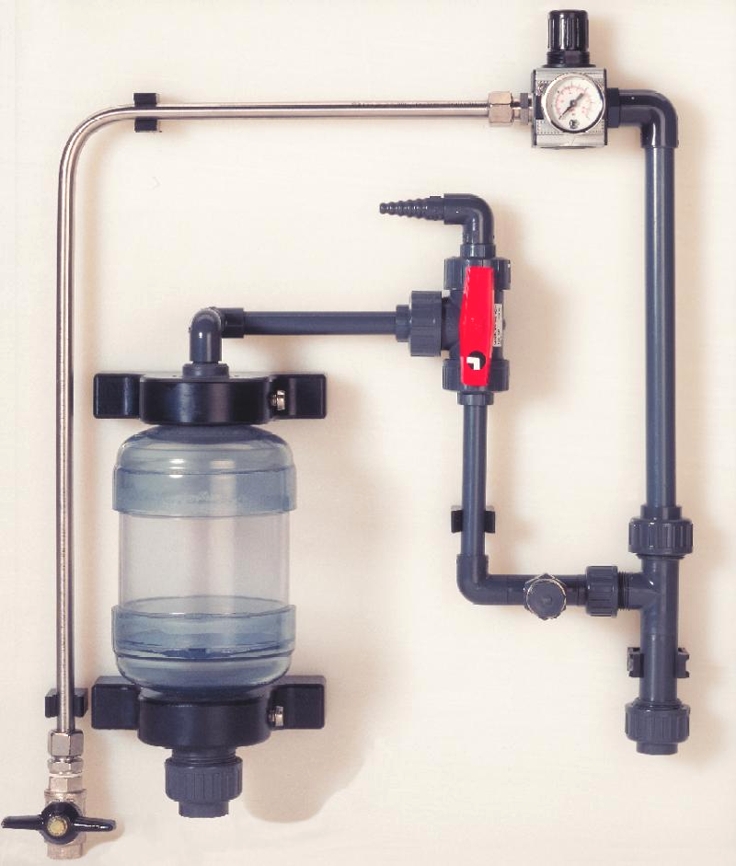

with siphon vessel from UPVC, pre-installed on a support plate for easy and efficient on-site installation.
Equipped with siphon vessel, 3-way ball valve, injector, ball valve and pressure control for compressed air.
Upon request siphon vessel from DURAN glass available.
