Tank equipment

Lagerbehälter

Manway, standard design

- manway lid with quick-action lock

- with rubber toggles, corrotion proof

- nominal diamer DN 500, DN 600 and DN 800

alternatively:

manway with pressure-relief lid for emergency use

Lagerbehälter

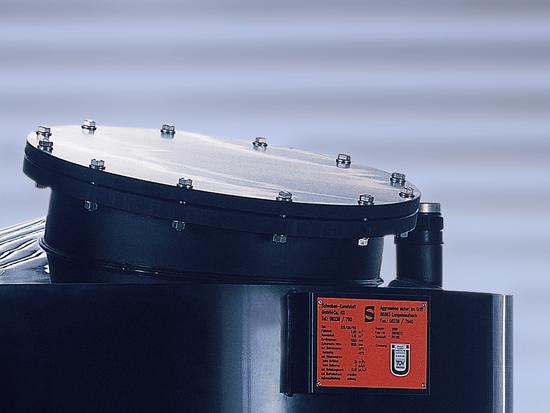

Manway, gastight design

- manway lid bolted

- with o-ring and bolts from stainless steel

- nomial diameter DN 500, DN 600 and DN 800

alternatively:

manway, liquid-tight for installation in the cylindrical wall section

Lagerbehälter

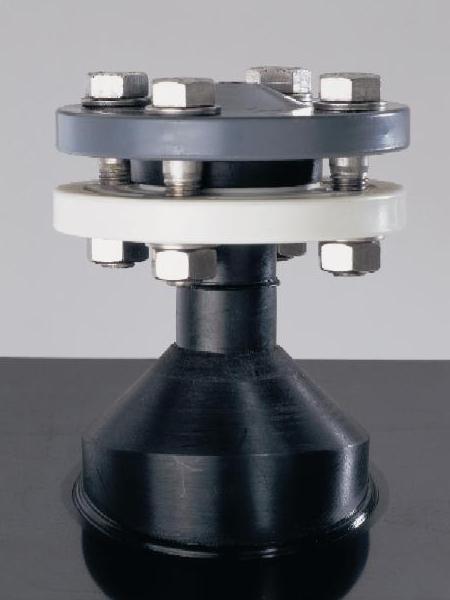

Nozzles (installed in tank roof or cylindrical wall) with bushing and backing flange

- hole pattern acc. to DIN 2501, DIN 2633, ANSI B16.5

with thread adaptor and sleeve nut

- connection sizes acc. to DIN 16963-15

with female thread

- pipe thread acc. to DIN ISO 228, DIN 2999

ventilation nozzle

- with 180° pipe bend, optional with filter grating

Lagerbehälter

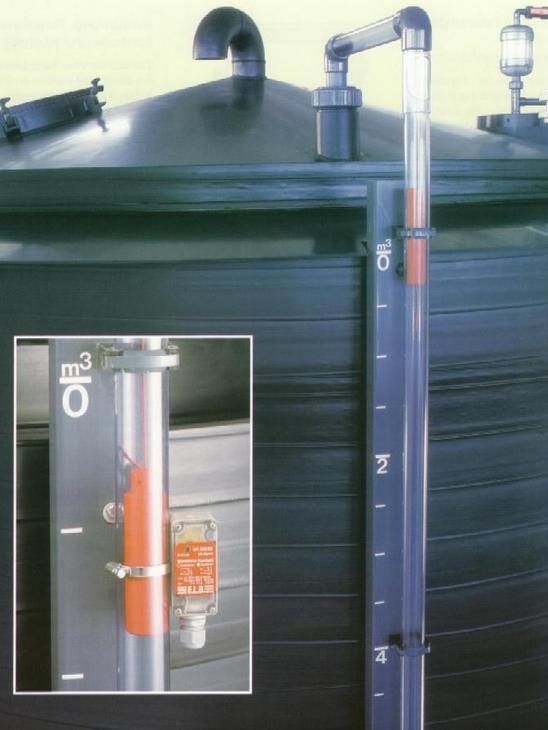

Liquid level gauge

with floater from HDPE inside tank and outside counter weight from red UPVC, incl. clear-transparent guide pipe

- floater removable straight thru the nozzle

- gastight design with condensate outlet available

- bistable change-over contacts available

- inkluding metering bar, pitch and labeling in m³

alternatively:

Electronic liquid level measurement (ultrasonic, radar, etc.)

Lagerbehälter

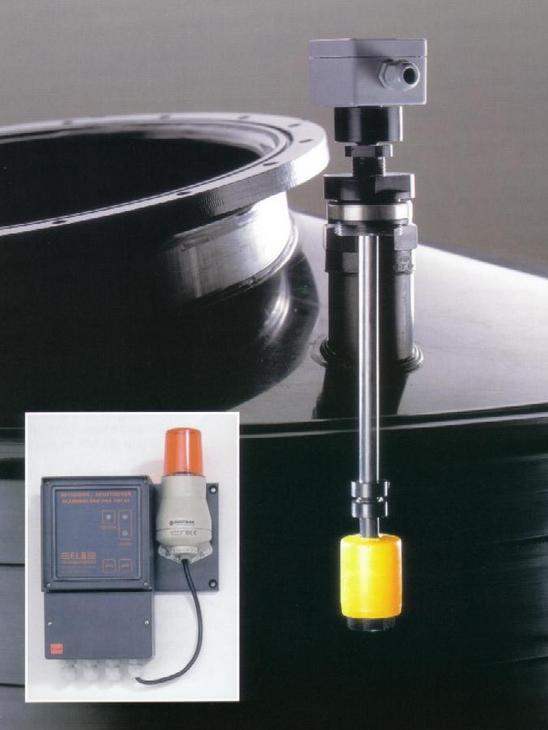

Liquid level limit switch acc. German Water Law

Filling level probe as overfilling prevention acc. law with DIBt-Approval, constructed as ring floater with permanent magnet and reed contact inside quide pipe.

The set consisting of ring floating switch together with a control unit (optial-acoustic alarm) or measuring transducer for cabinet installation builds a approved device acc. to German Water Law.

Lagerbehälter

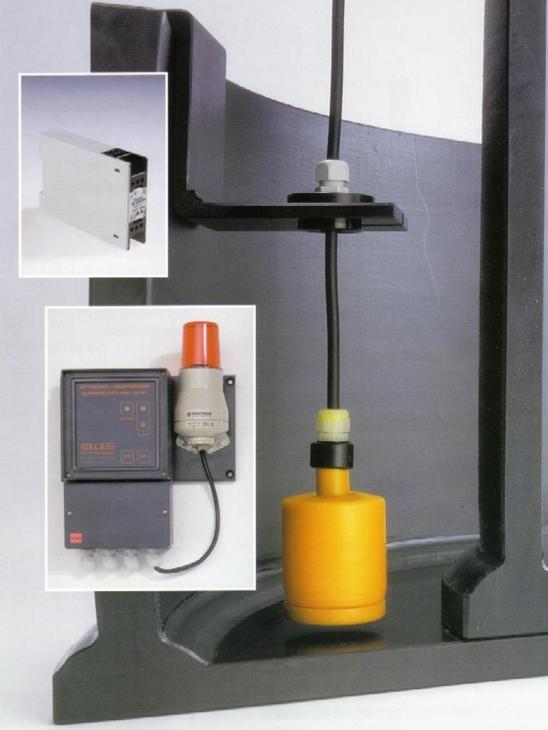

Leckage alarm acc. German Water Law

Filling level probe as leckage alarm acc. law with DIBt-Approval, constructed as ring floater with permanent magnet and reed contact inside quide pipe.

The set consisting of ring floating switch together with a control unit (optial-acoustic alarm) or measuring transducer for cabinet installation builds a approved device acc. to German Water Law.

Lagerbehälter

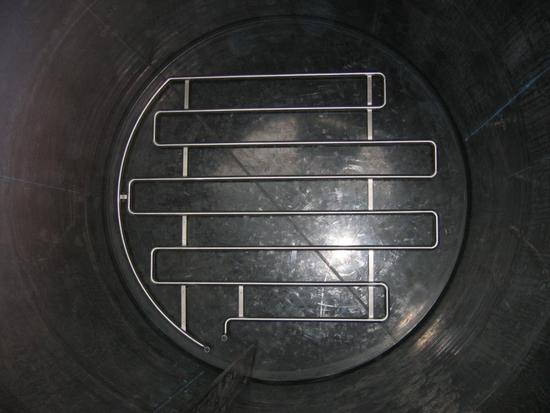

Heating coil from stainless steel 316 for use with warmwater, installed in a storage tank from HDPE

we provide the following storage-tank heatings

- heating pipes from PP or stainless steel

- electrical immersion heaters from stainless steel or titan

- electrical immersion heaters from PTFE or PP

- surface heatings on the tank outside from self limiting safety heating cable on polymer basis for optimized energy consumption we provide suitable tank isolations, e. g. from polyurethane foam

Lagerbehälter

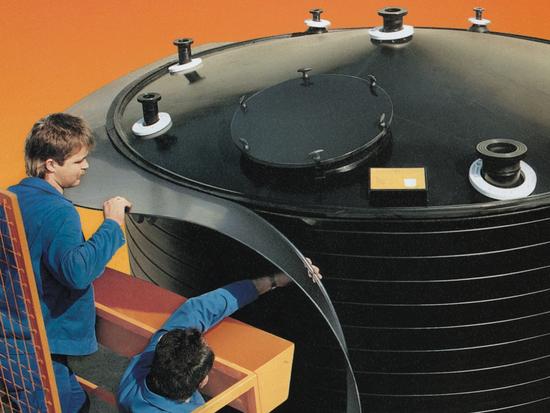

Protection collar from HDPE to cover the ring gap

between storage tank and secondary containment for protection against rain, snow or dust.

The protection collar could be slipped into a guiding profile, which is welded to the tank in our factory.

The time-consuming welding of the protection collar to the tank on the construction site becomes obsolete, as well as setting up a scaffolding around the tank.

Deformation of pre-mounted protection collars during transport are also things of the past.

Lagerbehälter

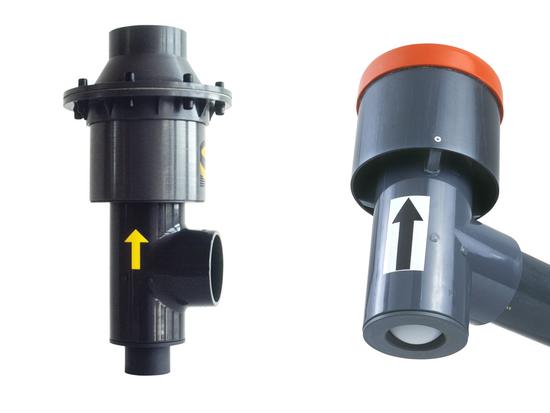

Overpressure / underpressure safety device

Build as ball valve for reliable protection of storage tanks against damage due to excessive pressure while charging or discharging the storage tank.

Lagerbehälter

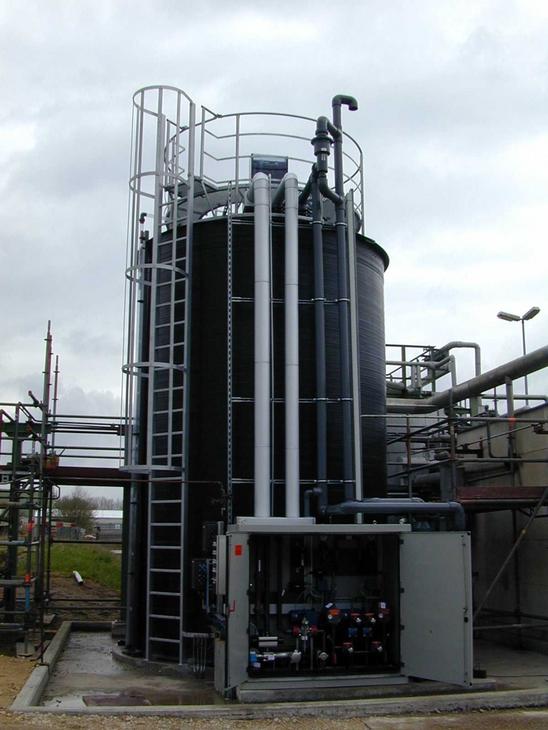

Tank platform with circumferential handrail

and circular service platform with steel grating and vertical ladder, optional with safety cage.

Made from galvanized steel or stainless steel according to the German Accident Prevention Regulations (UVV).

alternatively:

Vertical ladder with ladder exit (approx. 500 x 500 mm) optional with safety cage depending on ladder height
